continous fiber metal laser cleaning machine 1500w 2000w 3000w

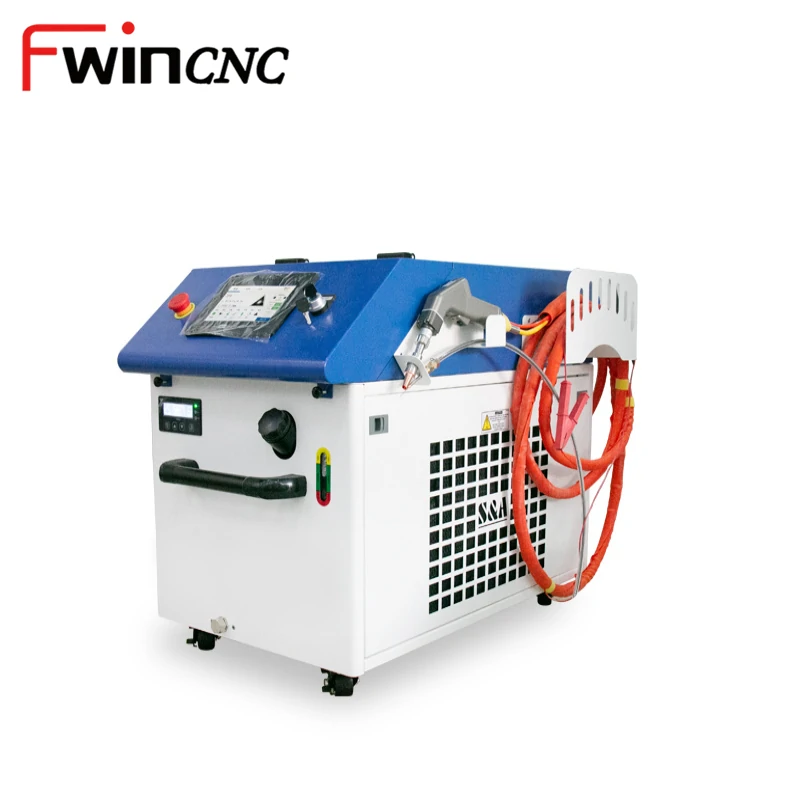

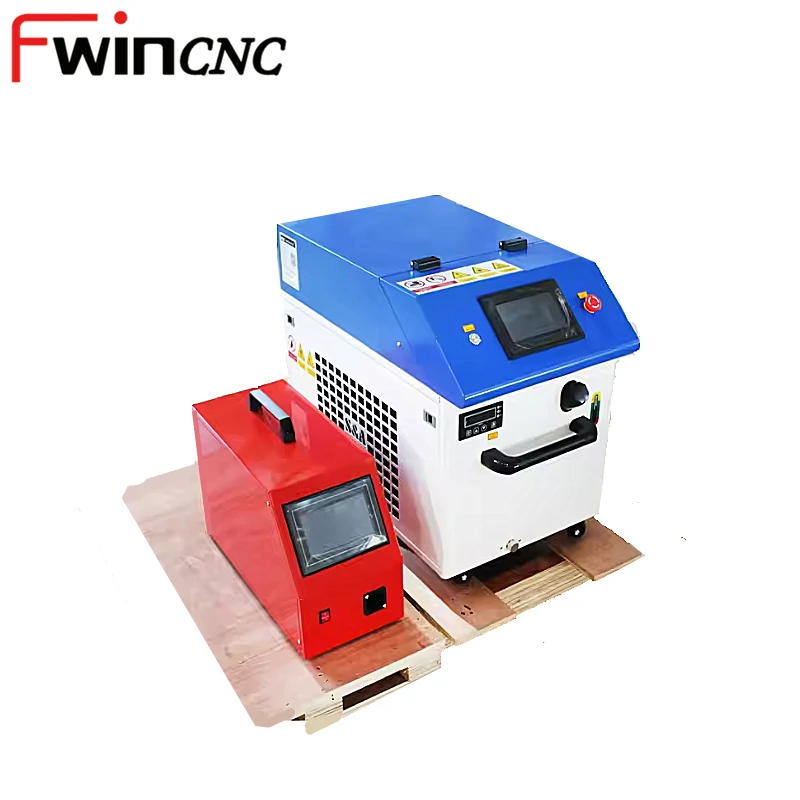

Handheld Continous Metal Laser Cleaning Machine 1500W/2000W/3000W

Handheld continuous fiber metal laser cleaning machines can remove rust, dust, oil and grease from surfaces of metal.

They are used to clean metal parts, molds, tires, weapons, aircraft paint, building walls and etc, can remove a variety of pollutants from aluminum, steel, carbon steel and other metals.

Handheld continuous fiber laser cleaning machines can instantly peel or evaporate, quickly and effectively remove coatings attached to metal surfaces, and laser rust removal, which basically does not damage the metal substrate, so handheld continuous fiber metal laser cleaning machines are mostly suitable for general surface.

Handheld continuous fiber laser cleaning machines features

1) Wide cleaning range, up to 400mm.

2) Non-contact cleaning

4) No chemical cleaning solution required

5) Simple operation

6) Almost maintenance free

Get A Free Quote

Products Categories

Laser Cutting Machine

Plasma Cutting Machine

Laser Cleaning Machine

Laser Welding Machine

Spare Parts

Get A Free Quote

Handheld continuous metal laser cleaning machine description

Handheld continuous metal laser cleaning machine Principle

1500w/2000w/3000w handheld continuous laser cleaning of the surface of the object will produce thermal expansion effect: that is, the difference between the substrate and the surface pollutants in the laser energy absorption coefficient of a certain wavelength, so that the substrate and the surface dirt absorb energy to produce thermal expansion, when the expansion force of the dirt is greater than the adsorption force of the dirt on the matrix, the dirt will be removed from the surface of the object.

Buy one handheld continuous metal laser cleaning machine, you will get:

Item	Specification	Unit	Quantity
Laser source	MAX Laser Source (100% NEW) 1500w/2000w/3000w	Set	1
Laser gun	RELFAR brand laser gun	Set	1
Water chiller	S&A water cooler	Set	1

Handheld continuous metal laser cleaning machine parameter

Producer for HANDHELD CONTINOUS METAL LASER 1500W/2000W/3000W
No.	continous style laser generator	Cleaning
1	LASER SOURCE	MAX BRAND SOURCE(100%NEW)
2	LASER POWER	CONTINOUS CW 1500W/ 2000W/1000W
3	CLEANING GUN/laser gun	BRAND RELFAR
4	WATER CHILLER	INDUSTRIAL WATER CHILLER 50HZ(2P)
4	LASER WAVE LENGTH	1080NM
5	Fiber Length	10M
6	beam wideth for cleaning	0-300mm
7	POWER ability	10KW
8	ADJUSTMENT FREQUENCY	1000Hz
9	Cooling Mode	industrial water cooling
11	CLEANING AREA(standard)	10Meter could customized
12	touch screen control panel	English language supporting Welding,cleaning,cutting mode
16	Gas source	0.2MPA(Argon)
14	Aiming and Positionning system	Red point
15	Laser Pulse Frequency	1-20HZ
16	Pulse Width	0.1-20ms
17	Adjusted spot range	0.1-3mm
18	Electrical components	schneider
19	Working Voltage	1PHRASE 220V ±10% FOR 1.5KW/2KW
19	Working Voltage	3 PHRASE 380v for 3KW
20	Package size(LWH)	162CM L 90CM W160CM
21	Gross weight	220KGS/230kgs/245kgs

For the general surface of the item, how can I achieve the best laser cleaning results:

Choosing the right power and using the right manipulation is the key to achieving the best cleaning results.

In addition, we need to ensure that the laser energy density is appropriate for your cleaning material, and first confirm the melting point and contamination level of the base material.

For metals with low melting point, the laser energy density is easily greater than its melting point, and the temperature of the base metal will be damaged after exceeding the melting point, therefore, it is very important to control the laser energy density, because the reasonable control of the laser energy density can control the temperature of the base metal. We can determine that the laser rust remover will damage the base metal, and only reasonable scientific control can avoid damaging the base metal.

Then, we all know that compared with hand-held rust removal and robotic arm rust removal, hand-held rust removal is difficult to evenly remove rust, but as long as we use multiple scans and layered rust removal methods, the damage can be reduced to the lowest level, greatly reducing the damage to the base metal.

In general, the higher the power of the pulse cleaning machine, the higher the laser energy density may provide better cleaning power, but this must also be combined with the correct manipulation and appropriate treatment of the specific material to ensure efficiency and safety.

Why buy one handheld continuous metal laser cleaning machine for us?

Our selling point is best price and separate design, which is easy to view and repair , includes the total package size is only 1m³.

What is advatages of separate design ? Maybe integrated design will cost less, but separate design makes water chiller and laser generator can be directly disassembly, so it’s more easier to repair than integrated design.

We all know all hanheld machines are convenient, can be moved freely in the workshop ,

Our handheld continuous metal laser cleaning machines are as well.

Handheld Continous Metal Laser Cleaning Machine vedio

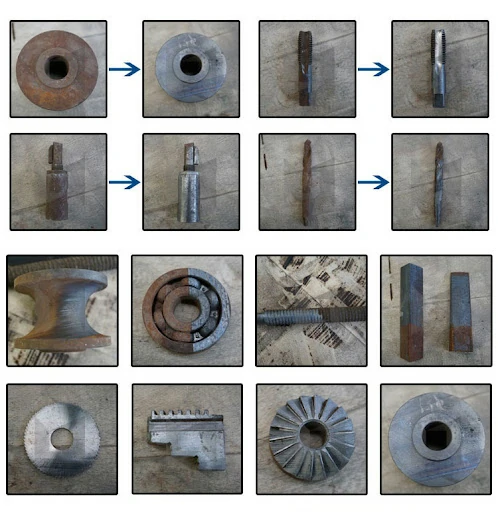

Handheld continuous metal laser cleaning machine application

How to choose the suitable laser cleaning machines?

First of all, there are 2 types laser cleaning machines: continuous fiber laser cleaning machine for metal, pulse laser cleaning machine for Metals, semiconductor wafers, ceramics, magnetic materials, plastics, Cardboard and optical components.

It is obvious that pulsed laser cleaning machines have a wider range of applicable substrate materials and better accuracy.

The continuously output laser beam is directly irradiated onto the surface to be cleaned, and dirt, coatings, oxides and other substances are removed through photothermal effects and chemical reactions, thereby achieving surface cleaning and purification.

For some large steel structures, such as pipes etc, due to the large volume and fast heat dissipation, the requirements are not high and you require fast cleaning speed, please choose our handheld continuous metal laser cleaning machine.

High precision, the need to strictly control the temperature of the substrate, the application scenario that requires the substrate to be non-destructive, such as the mold, the recommended choice of our pulse laser cleaning machines.
