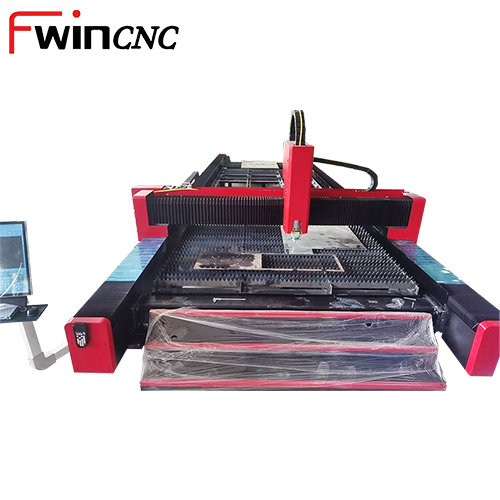

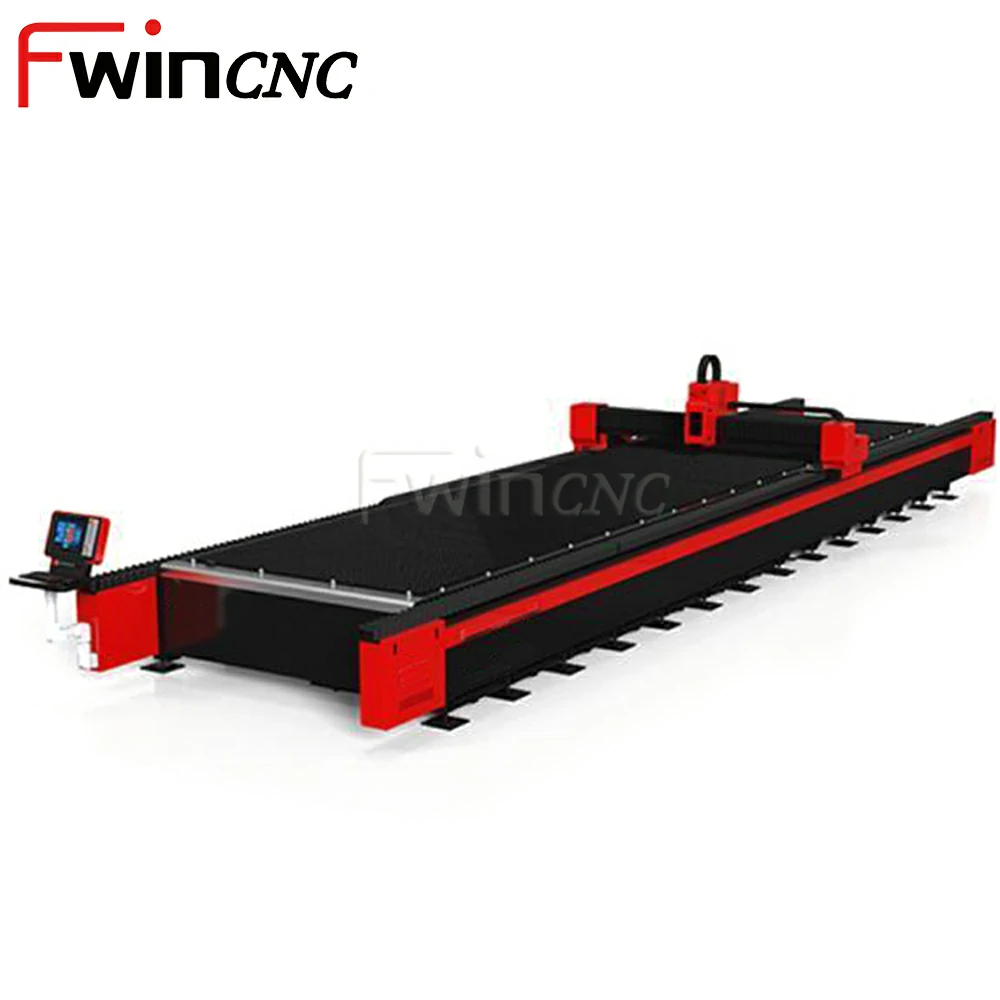

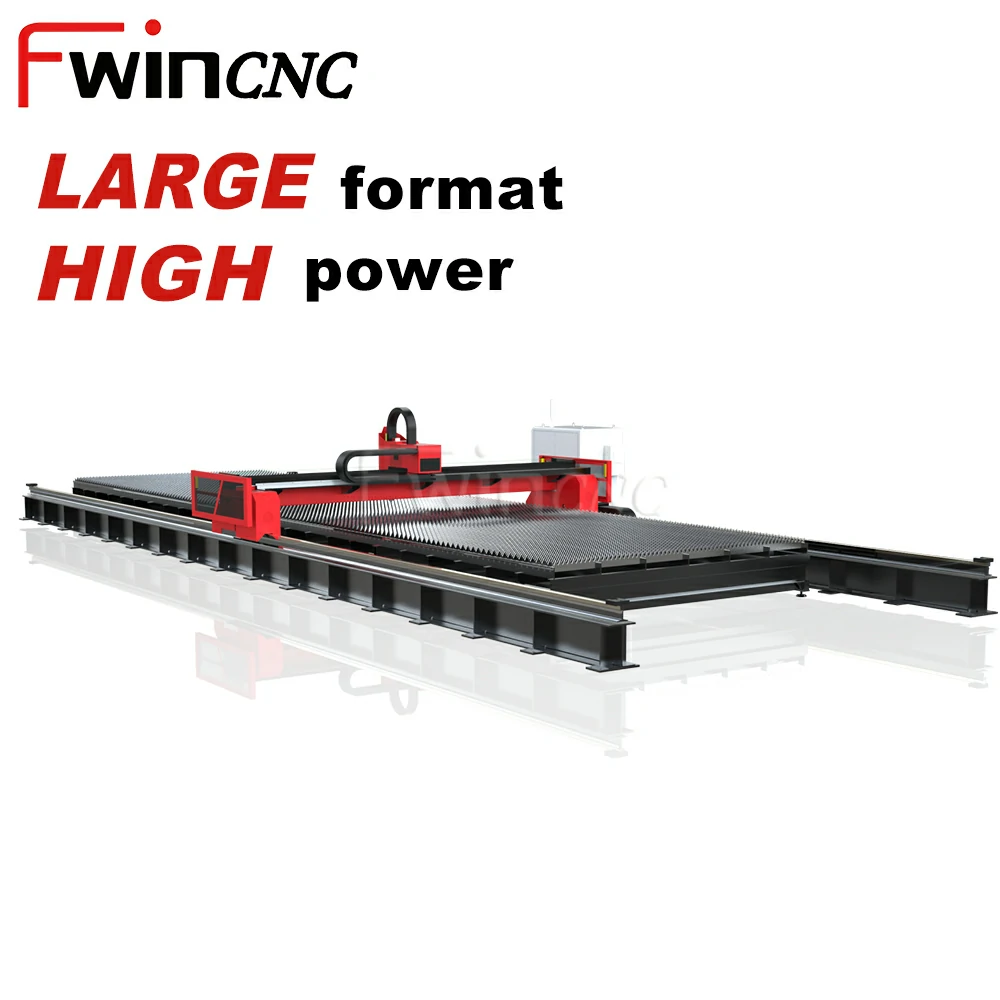

Ground rail Large-Format laser cutting machine

Stable Ground Rail Laser Cutting Machine

The ground rail laser cutting machine is primarily used for cutting larger area, heavier metal sheets, with a wider working range and more stable operation.

Features of ground rail laser cutting machine

1. The ground rail laser cutting machine boasts a spacious working area, allowing for cutting of large format materials with ease.

2. With high power capabilities, this machine can efficiently cut through various materials with precision and speed.

3. It is designed with excellent thermal and gravitational isolation features, ensuring stable and accurate cutting results.

Get A Free Quote

Products Categories

Laser Cutting Machine

Plasma Cutting Machine

Laser Cleaning Machine

Laser Welding Machine

Spare Parts

Get A Free Quote

Ground Rail Laser Cutting Machine Description

Item	Description
Laser source	Installation is mandatory at a temperature of 20ºC. Achieving an electric-optical conversion efficiency exceeding 30% is essential. The product boasts an impressive service life of up to 100,000 hours.
Water chiller	Please ensure a continuous supply of cooling circulating water to the laser and cutting head lens. It is crucial to maintain the pressure of the cooling water within the range of 4.5 to 6 Bar. It is necessary to use high-quality pure water or distilled water for this purpose.
Smoke exhaust and dust removal fan	Equipped with a powerful 1kw fan, this device effectively eliminates smoke and dust that are produced during the cutting process.
Cutting head and height sensor	The Swiss technology fiber laser cutting head guarantees precision and productivity. A high-quality sensor keeps a predetermined distance constant during rapid motion.
Motor drive	The servo motor offers precise control over speed and position, with a high torque speed. The main benefits of this motor include its stable operation, high performance, low energy consumption, minimal repair requirements, and excellent linear regulation characteristics.
Wireless handset	1. A wireless remote control handle is utilized for the operation of the machine tool.
Control system	The system complies with global standards and incorporates cutting-edge international technology that is extensively utilized in precision control and processing sectors. Utilizing PC architecture and operating on the WINDOWS platform, the system features an open structure and user-friendly interface, making it easy to grasp.
Programming software	This comprises a collection of system software designed for laser cutting in planes, encompassing laser cutting techniques, standard layout capabilities, and laser processing control. The primary features encompass graphic processing, parameter configuration, editing of cutting processes, layout design, path planning, simulation, and cutting control. Advantages: Supports various graphic data formats such as AI, DXF, PLT, Gerber, and more, making it easy to design layouts. Ensures high precision in processing due to its excellent mechanical and electrical drive dynamic performance. Addresses the issue of focus fluctuation caused by uneven plate surfaces by implementing a z-axis follow-up feature, which maintains a fixed focus. Enhances processing efficiency and control through analog graphic display and dynamic graphic tracing display, providing a more intuitive monitoring and control experience. Equipped with multiple alarm functions, including self-checking alarm and automatic protection features in the CNC system, ensuring safety and protection even in external conditions.

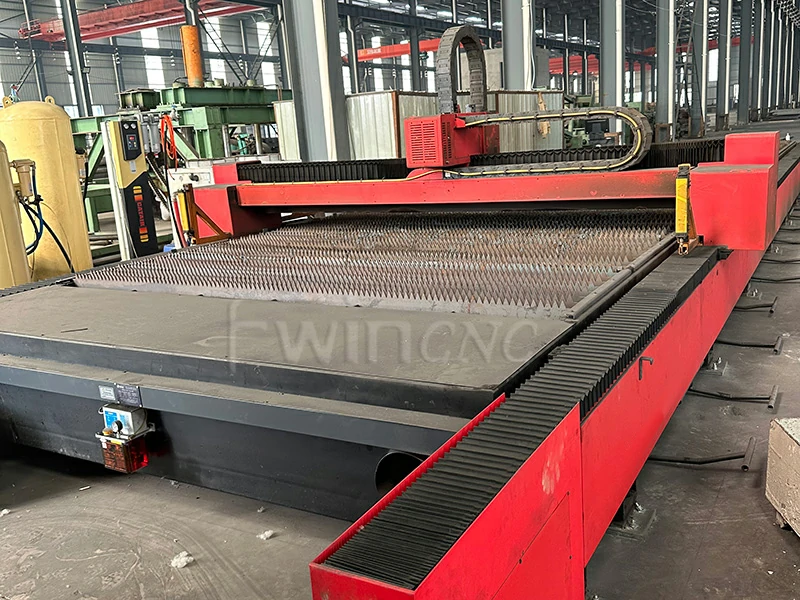

12KW Ground Rail Fiber Laser Cutting Machine Model 3012

Ground Rail Laser Cutting Machine Applications

The Ground Rail Laser Cutting System offers versatile operation across a diverse range of metal materials, from stainless steel to manganese steel, galvanized sheet, and alloy plates. With broad applications spanning the automotive, kitchenware, e-bicycle, medical, sporting goods, and furniture sectors, it serves as an efficient tool for precision cutting solutions.

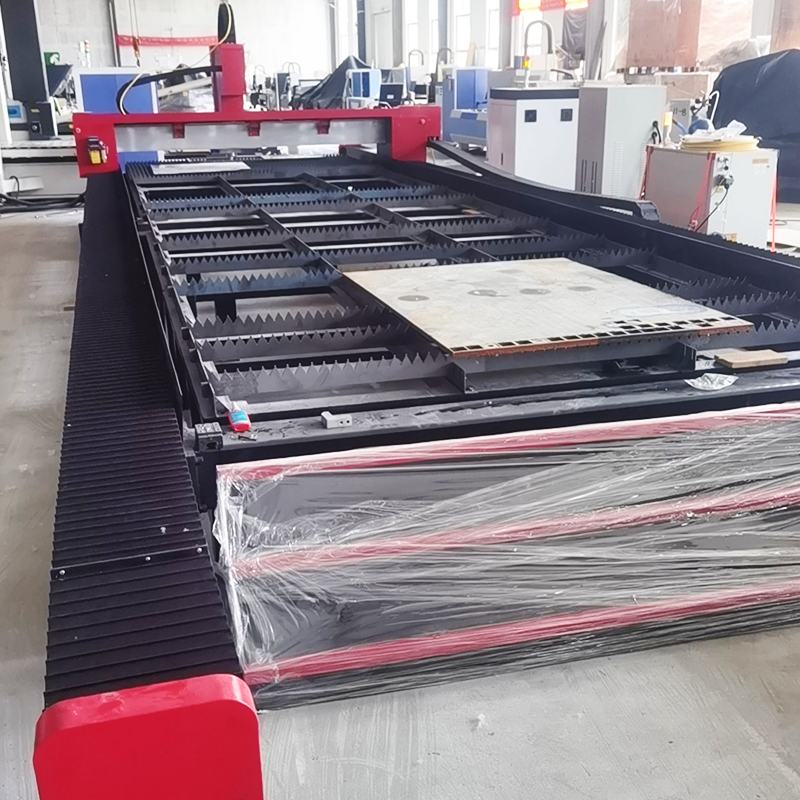

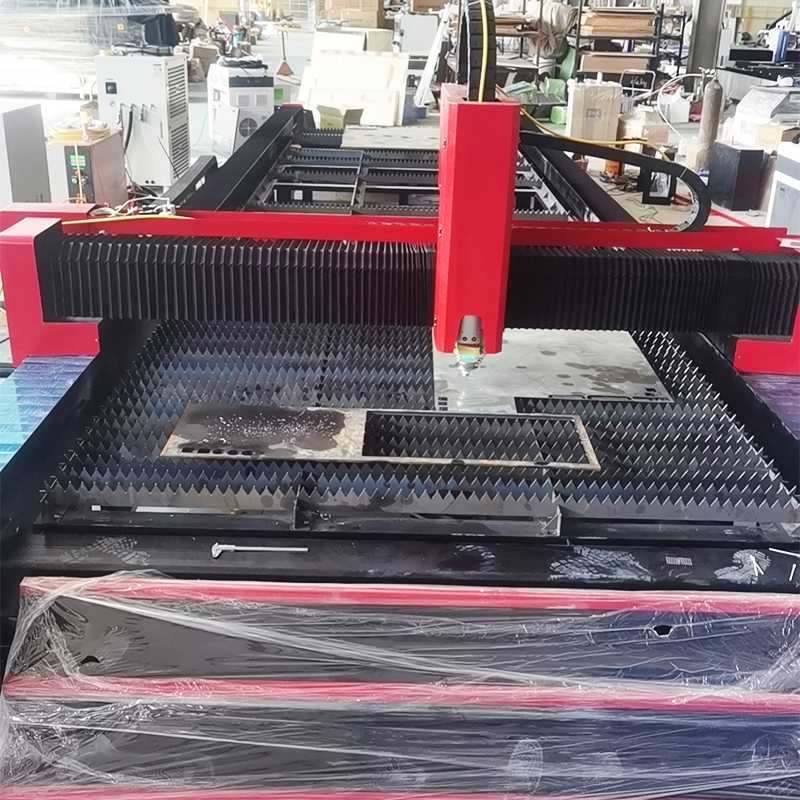

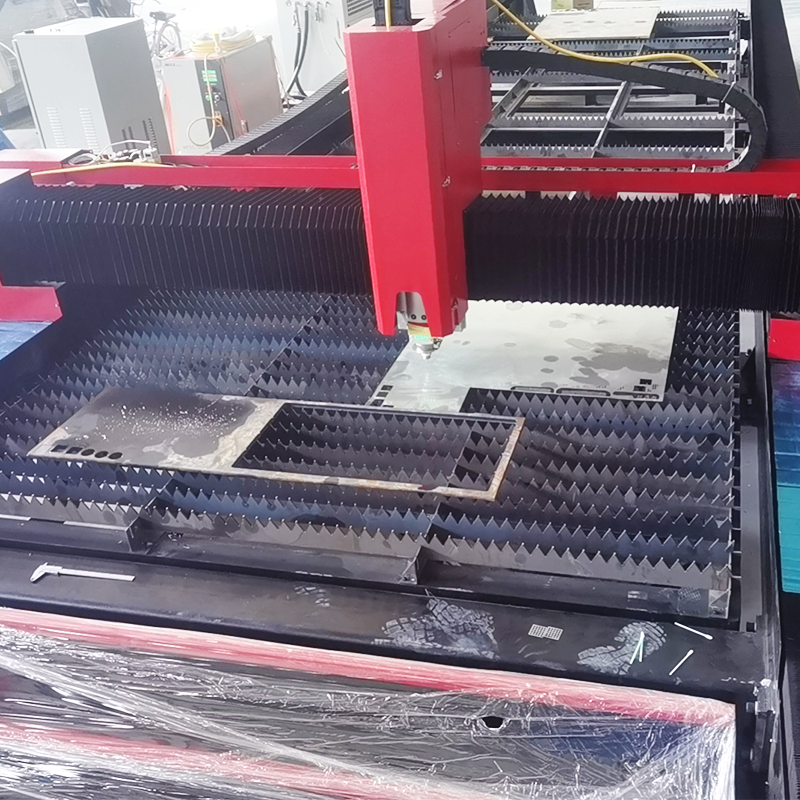

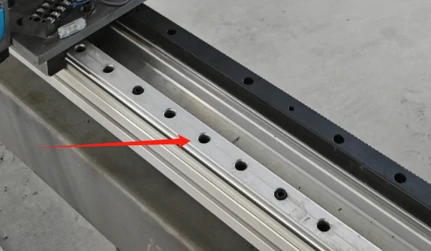

Ground Rail Laser Cutting Machine Detail Display

Why Get Ground Rail Fiber Laser Cutting machine?

The traditional cutting method has some limitations

Although the cutting thickness does have some restrictions, the precision isn’t assured, and the medium-to-heavy plates may require secondary processing for optimal results.

Traditional cutting methods have specific size limits, exceeding which necessitates separate operations. They’re also unable to handle ultra-long or ultra-large format parts efficiently. Additionally, these methods produce smoke and dust, posing potential environmental hazards.

Technical advantages of ground rail laser cutting machine

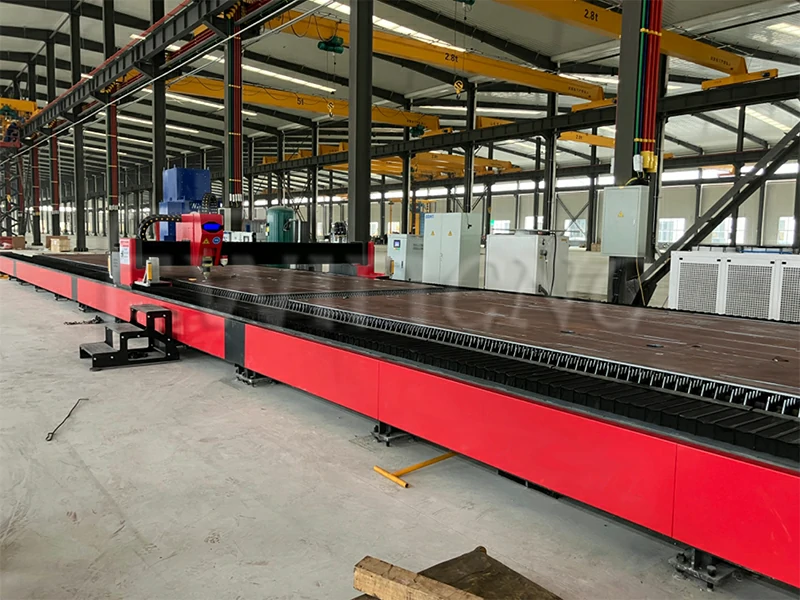

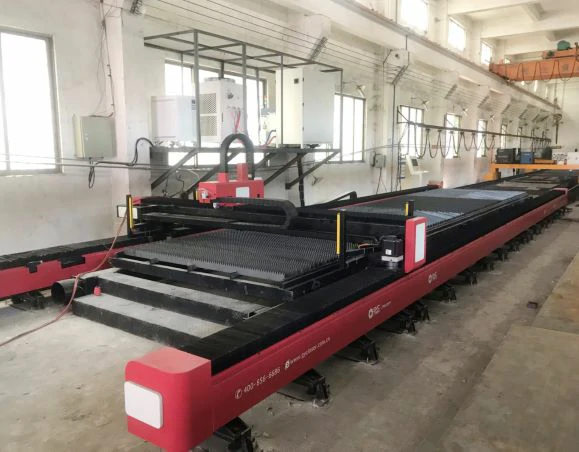

Our large-scale ground rail laser cutter boasts a segmented bed with smoke exhaust devices for precise, eco-friendly, and safe operation.

Its extensive workbench customizes various sizes, accommodating extra–length and extra-wide materials, allowing comprehensive processing of ultra-long parts.

Featuring optimized configuration, robust cutting power for medium and heavy plate cuts, intelligent blanking for time and resource savings.

With its high power, high configuration, and high efficiency, it effortlessly handles long and thick plates, ensuring peak efficiency and superior cutting quality.

Get Free Quote of Ground Rail Laser Cutting Machine

FWINCNC presents the latest advancement in laser cutting machines – the ground rail model. This state-of-the-art machine guarantees heightened efficiency, safety, reliability, and environmental friendliness.
